dual output switching power supply 12v 5v 2a ac dc adaptor
dual output switching power supply 12v 5v 2a ac dc adaptor
- CE FCC ROHS approval
- dual output power adapter 12v 5v suit for pos, cctv, led, lcd and
so on
- with 2 years warranty
- high efficiency
- 100% full-load aging test before delivery
Datasheet of dual power supply 12V 5V
INPUT: 100-240 VAC ~ 50/60Hz 1A
OUTPUT: 5V ----- 2A
12V ----- 2A
Connector Pin Out: 4Pin Mini Din type
- Pin 1: 5v DC
- Pin 2: 12v DC
- Pin 3: Ground
- Pin 4: Ground
Features of dual power supply
- High Efficiency
- High Reliability
- Over Load Protection
- Over Current Protection
- Short Circuit Protection
- Over Voltage Protection
- Over Temperature Protection
Remark
- Compatible for BENQ External Hard Drives and LaCie d2, P3
- Power Cord Cables (Plug standard for US/UK/EU/AU/Italy )
- Hello,my friends,If the product specification above is some
different from what you require actually, pls kindly let us know
the details, we will be pleased to re-offer you as per your
requirement asap.

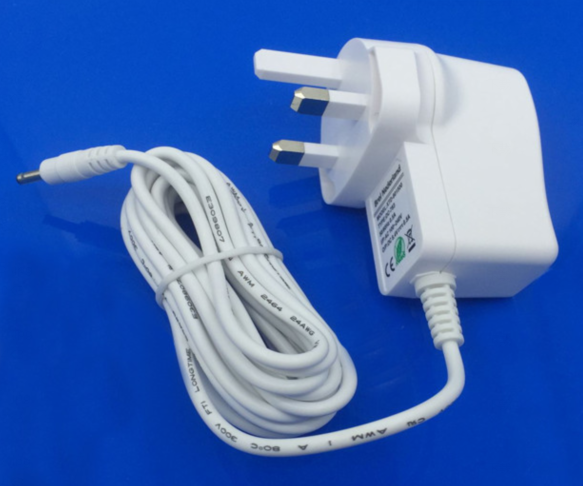

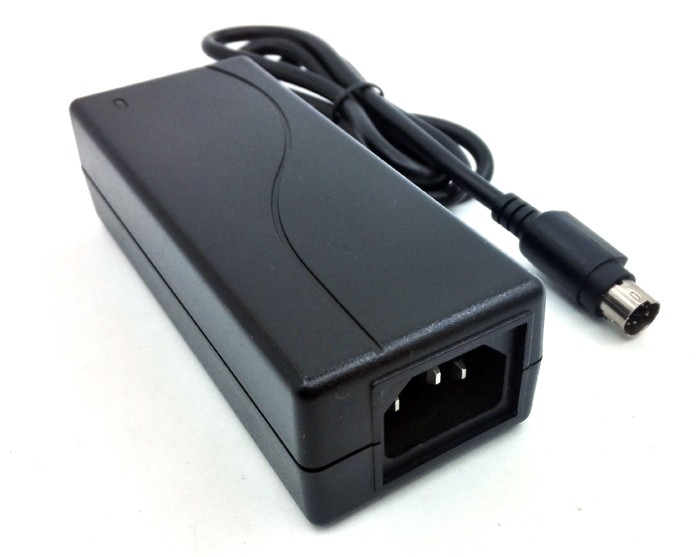

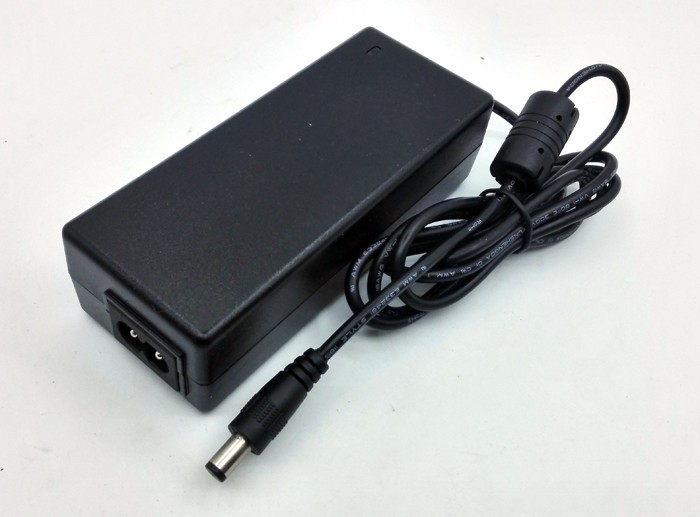

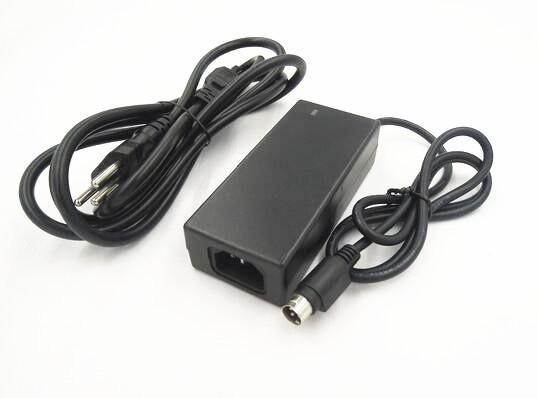

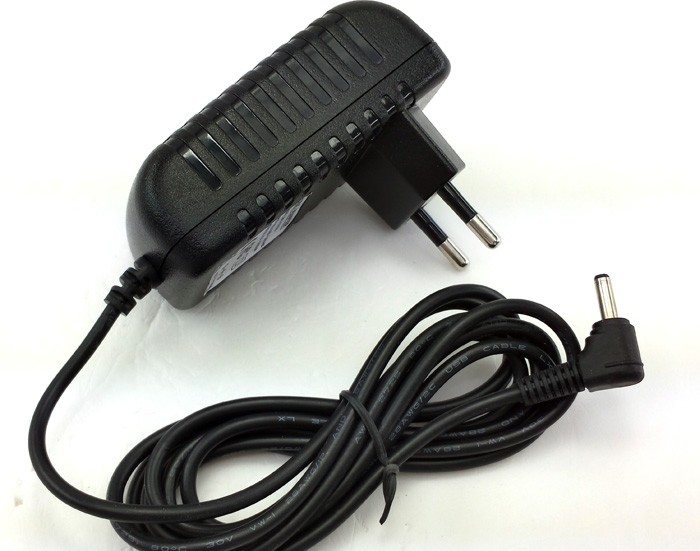

Picture of power supply 12v 5v
| Item | | UL CE approved AC DC Adapter |
| Input | | 90V - 264V AC / 47Hz - 63Hz |
| Output | | 5V - 28V DC / 100mA - 2000mA |
| Dimension( L x W x H ) | | 150*62.5*34mm / 76*43*36mm / 90*51*58mm |
| Load Regulation | | ±5% |
| Working Efficiency | | Class V |
| Ripple/Noise | | 100mV Min(P-P) |
| Inrush Current | | 15A Max @ 115V AC |
| Line Regulation | | ±1% |
| Operating Temperature | | 0 to 40°C |
| Storage Temperature | | -10 to 70°C |
| DC Jack (Plug) | | 5.5mm x 2.1mm
5.5mm x 2.5mm
4.0mm x 1.7mm |
| DC Cable Length | | 1.5/1.8/2.0/2.5/3.5m |
| Weight | | 90g - 350g |
| Color | | Black/white |
Clink more new product
sofa power supply or dc adapters 29v 2a power pack for recliner
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to
one exchange.)
Printing you LOGO and stick you modle also ok .
