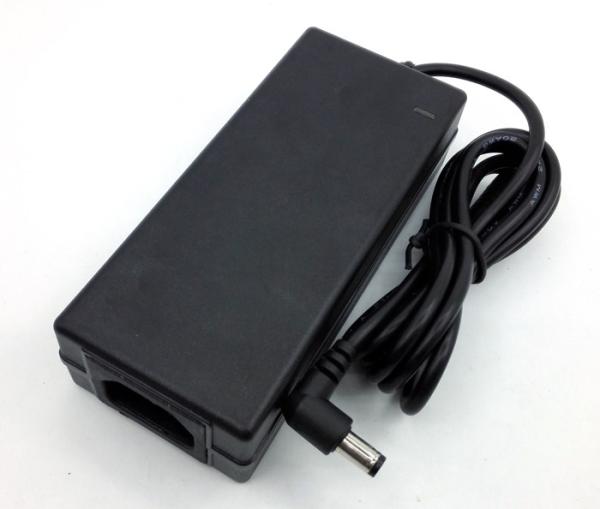

    ac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10a

    Ask Lasest Price
    Brand Name : BTB
    Certification : CE CB UL FCC SAA GS ROHS CCC KC
    Model Number : B-001500200
    Price : $2.0-$5.0
    Delivery Time : 1-3weeks
    Payment Terms : T/T,L/C,Western union,Cash,Paypal
    Supply Ability : 200000pcs/week
    • Product Details
    • Company Profile

    ac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10a


    • ac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10a


      Product Electric Parameters

      Input specification

      Input voltage

      AC100V---240V

      Input frequency

      50-60Hz

      Input surge

      20A@120VAC 40A@230VAC

      Output specification

      Output voltage can be adjusted

      ±10%

      Start-up time

      <1S(input230V Io=100%)

      keep time

      >20mS (input230V,Io=100%)

      Voltage regulation

      (Full load) <0.5%

      Protection function

      Overload protection

      105% - 150% rated power, automatic recovery

      Over-voltage protection

      105% - 150% of the rated voltage

      Insulation intensity

      Input---output

      1500VAC/1min

      Input---ground

      1500VAC/1min

      Input---ground

      500VAC/1min

      Safety standards

      According with GB4943, UL60950-1,EN60950-1 standards.

      E M C standards

      According with GB9254, EN55022 class A EN61347-2-13:2008 standards

      Environmental

      working temperature

      - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

      Storage temperature

      - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

      height above sea level

      <2000M

      Cooling method

      Cooling method

      Natural cooling air convection

      Product Type Table

      Product model

      output specification

      ripple, noise

      efficiency


      12V

      10A

      100mV

      85%


      Applications:


      ac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10a


      can be applied in security equipments, portable equipments, telecommunication equipments, consumer equipments, and other equipments.


      • Security equipment: monitoring camera, hard disk video recorder, security system, control equipment, monitoring equipment, etc.
      • Portable equipment: portable DVD, radio, mobile hard disk box, portable tools, charger, lithium ion battery, game machine, language repeater, walkman, digital products, tablet PC, etc.
      • Telecommunication equipment: router, microprocessor system, ADSL equipment, telephone composite aircraft, hub, telecommunications terminal equipment, cell phone, etc.
      • Consumer equipment: LCD TV, HD player, DVD players, digital photo frame, electronic refrigerator, acoustics, LED lamps and lanterns, small power electric appliances, electric tools, audio-video products, mini TV, decorative lighting, massager, LED lighting, electric bicycle battery charger, small size LCD TV and set top box, air cleaner, LCD, computer monitor, etc.
      • Other equipment: industrial automation control, military equipment, scientific research equipment, industrial control equipment, electric power equipment, medical equipment, semiconductor refrigeration and heating, computer chassis, instrument power supply, printer, testing equipment, and almost any other portable type equipment.

      ac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10aac power adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power adapter 1a 2a 3a 5a 10a


      Welcome to OEM/ODM

      Free sample

      Sample time : 3-5days

      Delivery time:7-10days

      Trade terms: FOB shenzhen

      Payment : T/T ,L/C,PAYPAL ,Western Union

      All product warranty 3 years(One years damage manufacture one to one exchange.)

      Printing you LOGO and stick you modle also ok .

      Credit is the basis , Quality is the first

      Power adapter ,Charger ,Power supply Manufacture


      Skype:beryl--qin

      What's app: 86 13412619588

      QQ:1767294269

      Wechat: beryl18

      www.btbadapter.com
