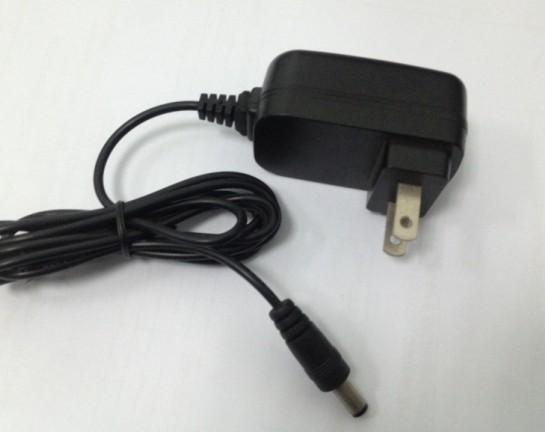

swiching power supply 9V 2A charger mall mount adapter

Features of power adapter
Universal Input 100~240V AC 50~60Hz
Built-in Class B EMI FilterHigh Efficiency
Short Circuit protection Lightweight Compact

Electrical Specifications of the switching power adapter
(AC Input)Rated Input Voltage: 100~240V AC
Input Current: 0.45A(RMS) @ 115V AC0.20A(RMS) @ 230V AC
Input Frequency: 50~60Hz
Inrush Current: Max. 50A @ 230V Cold Start
Low Standby Power 0.3W Max
Output: 3~24VDC 15W Max.

Environmental Specifications of power adapter
Operating Temperature: 0~40C @ Max. LoadNon-operating Temperature: -40 C 85 C
Humidity: 5% to 95% Non-condensing
Safety Specifications of power adapter:
Standards Reference Class 11 SELV for the following agency Requirements:
CCC, UL, CSA950(cUL), TUV-GS, EMC, CB, FCC. NEMKO. RoHS

Mechanical Specifications of power adaptor
Weight Approx. 110g
Dimension L71.5mm(2.81'')W42.5mm(1.67') H48.5mm(1.90'')
Connectors DC Output: 1.8m wire, "H"shaped head or according to customers' choice.

   Shenzhen BTB Technology Co. ,Ltd ,established in 2002, is a leading manufacturer and exporter of switching and linear power adapters, transformers, chargers, car chargers and  high-tech enterprise specialized in developing and manufacturing products in the fields of Power Supply Products,  DC stabilized constant current power supply, AC stabilized power supply, DC-DC convertorPublic Safety Electronic Products etc.
     which have been widely used in public security, school, scientific research institution, and domestic large, medium and small-scale enterprises and foreign invested & joint venture enterprises, and are sold well to all over the country and accepted by many well-known factories.
    We strict implement the operation guideline of “Leading Technology, Reliable Quality, Satisfactory Service and Customer First”, are dedicated to building up our series products, and win the market with first-class quality, perfect services and higher price & performance ratio.
    Advanced technologies, reliable products, competitive prices and excellent service are leading Anqishun to greater achievements. Anqishun continues to explore new technologies and markets to satisfy flexible requirements of the customers all over the world.
   .We will win more customers’ trust with good credits and services. We will meet a new day with the spirit of more self-confidence, dedication, justice and innovation!

    We have a strict quality control and guarantee system and have been ISO9001:2000 certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese Quality Certification Center. Besides, we also carry out the international authoritative certifications, such as UL,Rohs,PSE,BSMI,SAAA,GS,KC,EK, CUL, TUV, CSA, and GS, etc.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcomed too.
